Datasheet

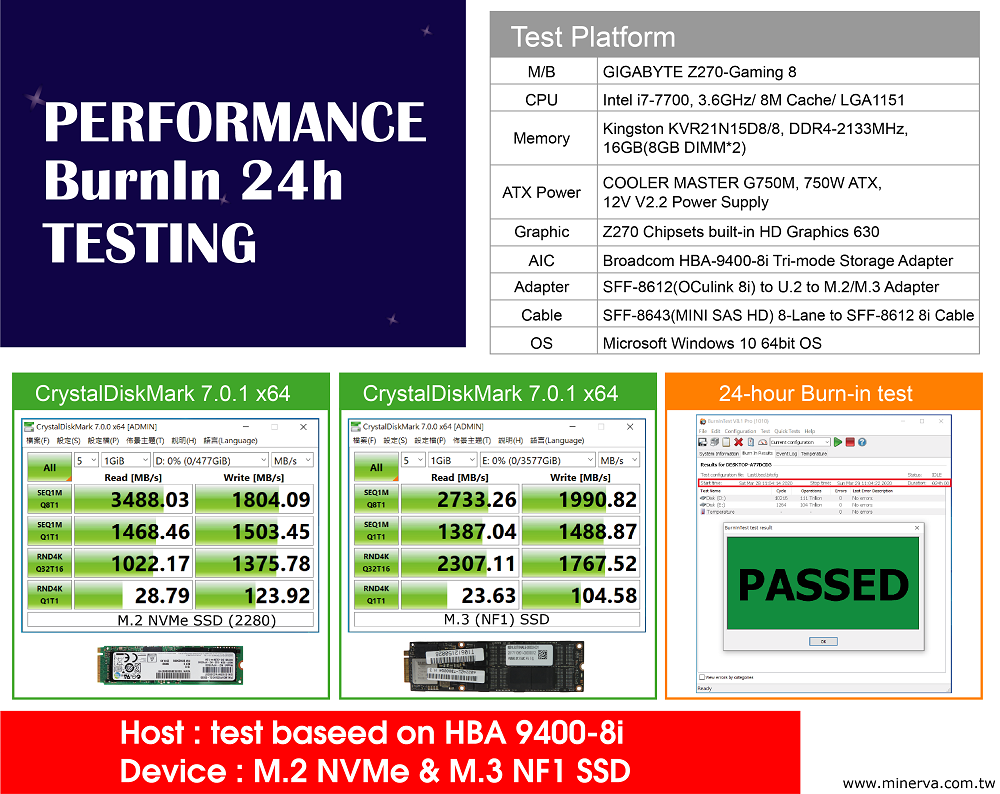

Test report - Test base on Broadcom HBA 9400-8i storage adapter
2D Drawing

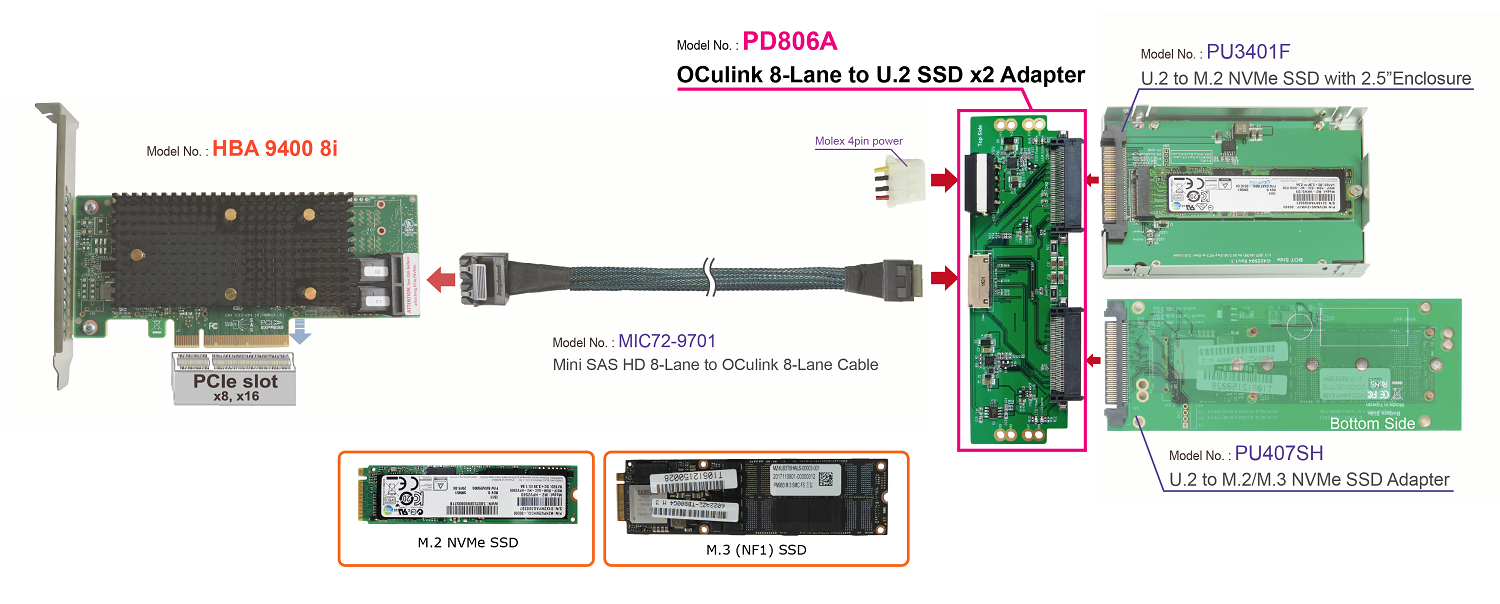

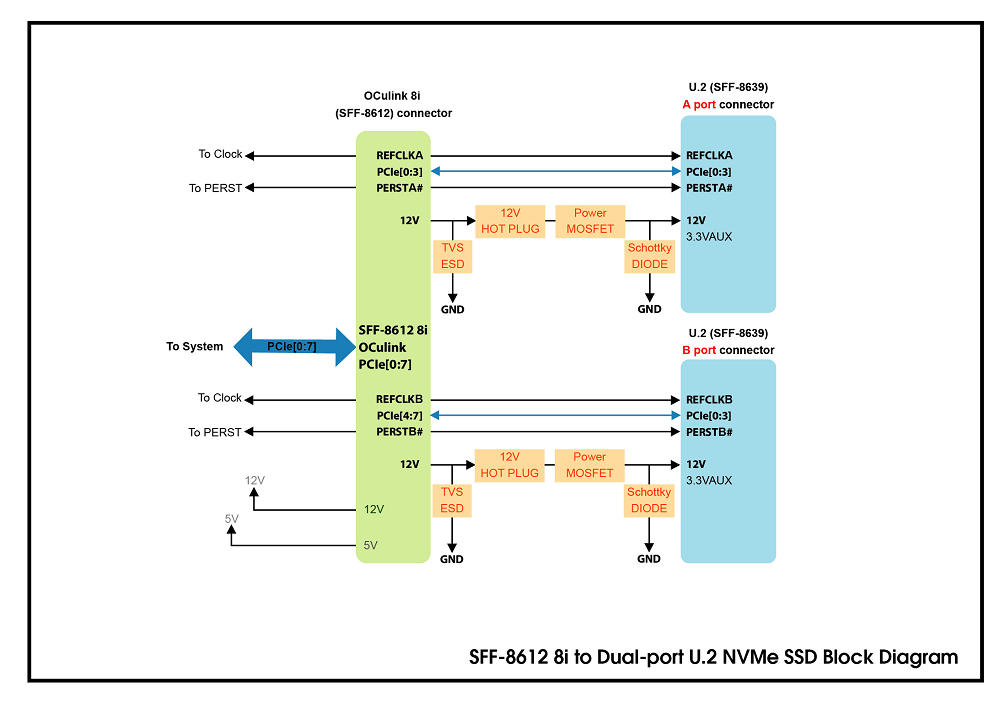

- Built-in SFF-8612 8i(OCulink) Female connector
- Built-in U.2 SFF-8639 Female connector x2
- LED1, LED3 Green LED on indicates U.2 SSD power ready
- LED2, LED4 Red LED on indicates U.3 SSD activity
- Built-in +12V Hot Plug Power Module to protect U.2 NVMe SSD destroied
- Provides 3.3Vaux for U.2 NVMe SSD SMBUS Access
- Provides 3.3Vaux for U.2 NVMe SSD SMBUS Access OCulink
- Compliant with NVM Express 1.0a
- Supports PCI Express Base Specification Rev 3.1
- Supports SSD_Form_Factor_Version1_a
- Compliant with PCI_Express_OCuLink_1.0a
- Compliant with PCIe_SFF-8639_R3.0_V1.0
- Compliant with SFF-9402 Specification Rev 1.0
- Compliant with Broadcom MegaRAID and HBA Tri-mode Storage Adapter
- Compliant with Intel TriMode Adapter
